Name:                                                                           SSN:

   import  java.sql.*;
   import  java.io.*;
   import  oracle.sql.*;
   import  oracle.jdbc.driver.*;
   ...
      DriverManager.registerDriver (
         new  oracle.jdbc.driver.OracleDriver ( ));
      Connection  conn = DriverManager.getConnection (
         "jdbc:oracle:oci8:@csedb", "ops$userid", "password");


---

      select * from person where age > 50;


1. (OODB Language) If an employee IsA person, the above query may result in heterogeneous sets.       (8%)
   • Explain the two methods to solve the problem.
   • Discuss the further processing needed for each of the above two methods.

























2. (Inheritance) Inheritance conflicts may occur when a class has two immediate superclasses. Explain the three methods to solve the issue of inheritance conflicts.       (8%)

















































   classA:            [attr: classC];
   classB IsA classA: [attr: classD];


3. (Safety) Explain why the type of a redefined attribute must be a subtype of the type of the original attribute, e.g., the classD IsA classC.       (8%)

























---

4. (DOM) Explain how the Trader mediator works in a DOM system.       (8%)





















5. (ORB) What are the differences between the ORB and RPC (Remote Procedure Call)?       (8%)

























---

    create type book_typ as object (
       title     char(32),
       author    char(32) );

    create table book of book_typ;

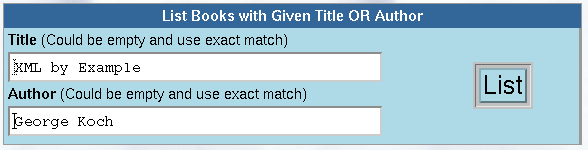

6. (JDBC and Stored Procedures) Give a JDBC program list.java which responds to the query from the following interface. The list.java contains a stored procedure which includes all the SQL commands of the list.java.       (14%)


























































7. (Integrity Constraints and JDBC)       (16%)
   • Implement a book database using ON DELETE CASCADE clause. Two books may have the same title.

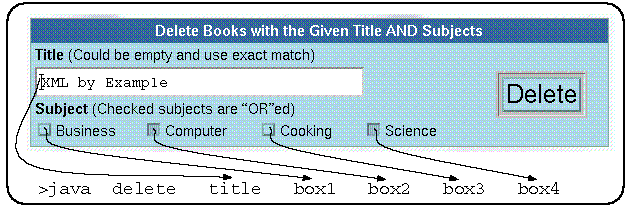

   • Give a JDBC program delete.java which responds to the query from the following interface.







































































8. (Trigger and JDBC)       (12%)
   • Implement a trigger which increases the updated book price by 10.00 if the updated price is less than 0.00.

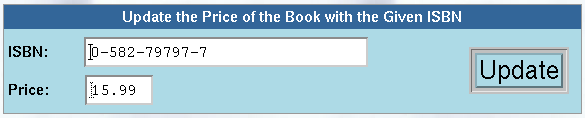

   • Give a JDBC program update.java which responds to the query from the following interface.

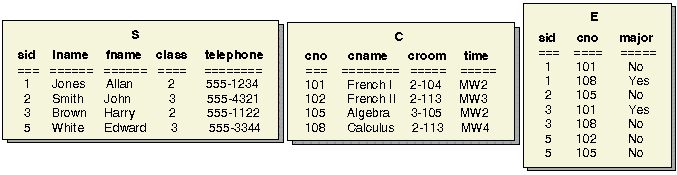

Sample values of a relational student enrollment database, of which sid, cno, and (cno, sid) are the primary keys of tables S: students, C: courses, and E: enrollment, respectively.


9. (Integrity Constraints, Views, and Security)
   • Create a view, Sview on the table S, that is updatable and will keep any user who updates Sview from changing the class column to a value less than 1 or greater than 4.       (6%)












   • Assume we have a missing integrity on the the class column for S, i.e., the value of the class column must be greater than 0 and less than 5. Give a SQL command to ADD this integrity constraint to the table without re-creating the table.       (6%)












   • Give SQL commands to grant privileges to a user name Johndoe to be able to look at the S table columns sid, lname, class, and telephone, and update either of the columns class and telephone.       (6%)
